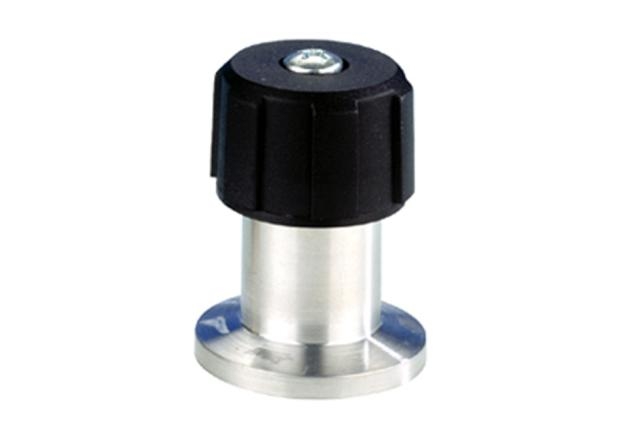

AV10K Air Admittance Valve
The AV10K is manufactured in aluminum alloy. It has a control knob attached to a screw-actuated plunger: turn the control knob clockwise to close the valve. A nitrile ‘O’ ring seals the plunger to the valve body.
The valve can be pipeline supported only, and is connected to the vacuum system with an NW10 fitting.
Dane techniczne
| Materials of construction | |
| Body | HE30 aluminum |
| Control knob | Nylon 6 |
| Seal | Nitrile |
| Leak rate across seat | 10-7 mbar ls-1 / |
| 8 x 10-8 Torr ls-1 | |
| Leak rate through body | 10-1 mbar ls-1 / |
| 8 x 10-2 Torr ls-1 | |
| Vacuum connections | NW10 |
| Weight | 100 g / 3.5 oz |
