ADC Standard i Enchanced

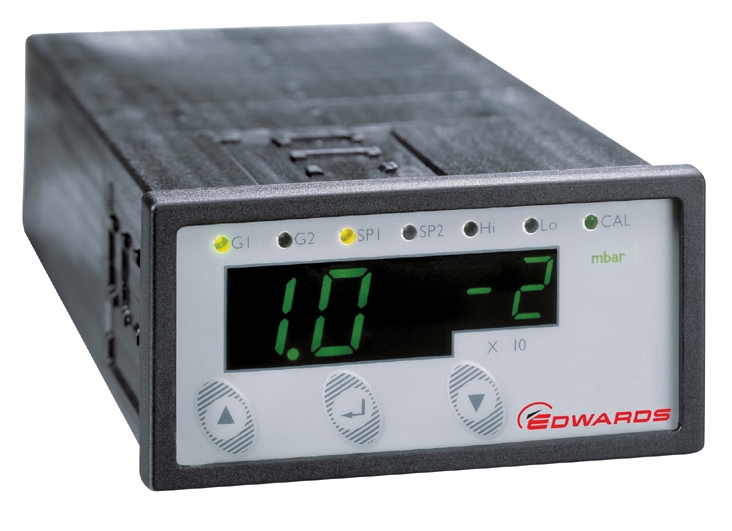

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display. It features a bright LED display and simple push-button controls. The ADC automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.
Two versions are available; the standard ADC simply displays the pressure in choice of units, and the enhanced ADC includes a second gauge connection, two set-point relays, two analogue outputs and an RS232 interface.
The ADC mk2 enhanced controller can now support 2 different gauges e.g. APG100 and AIM.
Informacje
Features and Benefits
- Plug and measure operation means you simply plug in the mains supply, connect the gauge and ADC displays the measured pressure
- The ADC supports Edwards gauges with a total measuring range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr)
- Bright LED display gives clear, long distance readability
- The ADC displays units in mbar, Torr, Pascal or Volts
- Small 1/8 DIN enclosure, may be panel or bench mounted
- Simple push-button control makes operation highly intuitive
Dane techniczne
| Active gauge compatibility | |
| Standard | APG100, APG-L, APG-MP, APG-M, APGX-H, APGX-L, WRG |
| Enhanced | Up to two gauges from the standard version plus AIM-X, AIM-S & ASG |
| Display | High brightness green LED display (0.47 inch high) |
| Units - mbar/Torr/Pa/Volts | |
| Electrical supply | 100 to 240V AC 47 to 63 Hz |
| Dimensional Data | |
| Panel cut-out | 92 + 0.8 x 45 + 0.6 mm (3.62inch x 1.77 inch) to DIN43700 |
| Panel thickness | 1.5mm (0.06 inch) Min |
| Weight | 0.33Kg |
| Operating and storage data | |
| Operating temperature | +0 to +40°C |
| Storage temperature | -30 to +70°C |
| Max ambient operating humidity | 90% RH non condensing at 40°C |
| Standards | |
| Electrical safety | BS EN 61010-1 |
| Electrical noise immunity | BS EN 61326 (Industrial location, class B emissions) |
| Flame retardant case materials | UL94 V1 |
| Enclosure rating | IP40 |
| Enhanced features | |
| Two analogue output | 0-10V d.c. |
| Two set-point relays, volt free single pole change-over | 1A at 48V d.c. / 2A at 24V d.c. |
| Serial output | RS232 |
