APG100 / nAPG100

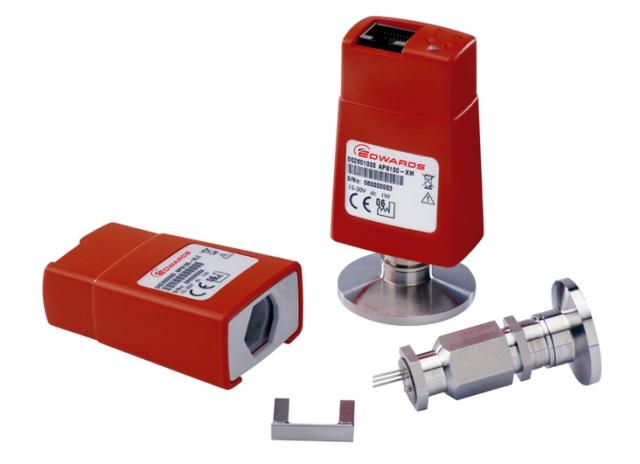

Features include compact size for easy installation, a linear output, and a replaceable sensor tube. The new gauges are compatible with all Edwards TIC instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction.
nAPG100 - to głowica z wyjściem cyfrowym RS485. Karta katalogowa do pobrania poniżej.
APG & APG100 Obsolescence Notification
In 2021 Edwards introduced a brand new range of Pirani gauges, the APG200 series. This new range replaces the APG100 series and the older APG Series which will be going obsolete at the end of July 2022.
Informacje
Features and Benefits
- Cable connections and gauge adjustment conveniently located, thereby minimizing the space envelope required for access
- Sensor tube can be baked to 150 oC
- Adjustable set-point for simple process control and interlocking
- Remote calibration possible
- CSA, C/US approved
- Linear output - 1 volt per decade for easy interface with vacuum control systems
- LED status indicator shows normal and fault conditions
- Non standard flange fittings available on request.
Dane techniczne
| Mass | 85 g |
| Internal volume | 5 cm3 |
| Enclosure rating | IP40 |
| Measurement range | |
| (APG100-XM) | Atmosphere to 10-3 mbar |
| Measurement range | |
| (APG100-XLC) | Atmosphere to 10-4 mbar |
| Accuracy (APG100-XM) | Typically +/- 15% at |
| Accuracy (APG100-XLC) | Typically +/- 15% at |
| Maximum over-pressure | 10 bar absolute |
| Operating temp range | 5o to 60o C |
| Storage temp range | -30o to 70 oC |
| Bake-out with no electronics | 150 oC |
| Humidity | 80% RH up to 31 oC decreasing linearly |
| to 50% RH at 40 oC and above | |
| Maximum altitude | 3000 m |
| Filament temperature | 100 oC above ambient |
| Electrical supply voltage | 15 to 30 V d.c. nominal |
| 13.5 V d.c. minimum | |
| 32 V d.c maximum | |
| Power consumption | 1 W |
| Output signal | 0 to 10 V d.c. nominal |
| Set-point – open collector transistor | |
| Rating | 30 V d.c. 100 mA |
| Range of set-point | 1.8 to 9.2 V dc |
| Fixed hysteresis | 500 mV (1/2 decade) |
| Level setting resolution | 6 mV |
