CG16K

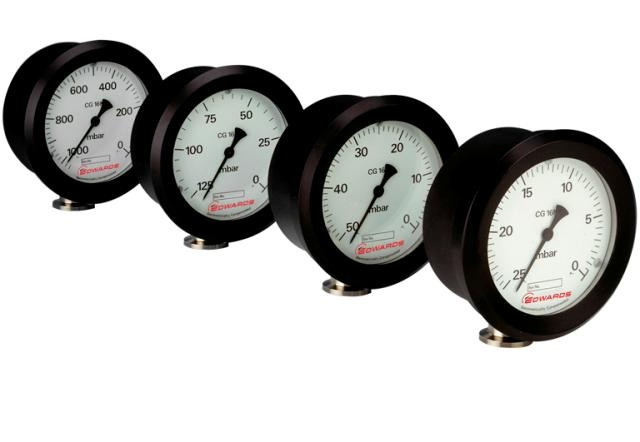

Edwards CG16K capsule dial gauges are barometrically compensated with NW flange fittings. Designed to cover the range of 0 to 1040 mbar, these robust gauges provide accurate, repeatable performance even at low pressures making them equally suited for non-corrosive process plant or for laboratory applications. Fitting is simple: the gauges can be mounted direct or panel mounted using the kit supplied.
Informacje
Features and Benefits
- Reading independent of gas type
- Accurate to ±2% of full scale
- Barometrically independent
- Pipeline or panel mounting
- Easy to read linear scale
- Rugged construction
- Bezel removable for cleaning
Applications
- Backfilling
- Portable equipment
- Degassing
- Refrigeration
- Flammable vapours
- Upgrade from Bourdons
- Packaging
Dane techniczne
| Range | 0-1040 mbar, 0-760 Torr |
| 0-125 mbar, 0.100 Torr | |
| 0-50 mbar, 0-40 Torr | |
| 0-25 mbar, 0-20 Torr | |
| Accuracy | ±2% of full scale deflection |
| Maximum applied pressure | |
| 25 mbar version | 1 bar absolute, 0 bar gauge |
| Other versions | 2 bar absolute, 1 bar gauge |
| Weight | 1 kg |
| Vacuum connection | NW16 Flange |
| Accessories supplied | Clamp and studs for panel mounting |
Pliki do pobrania
CG16K Capsule Dial Gauges Datasheet
