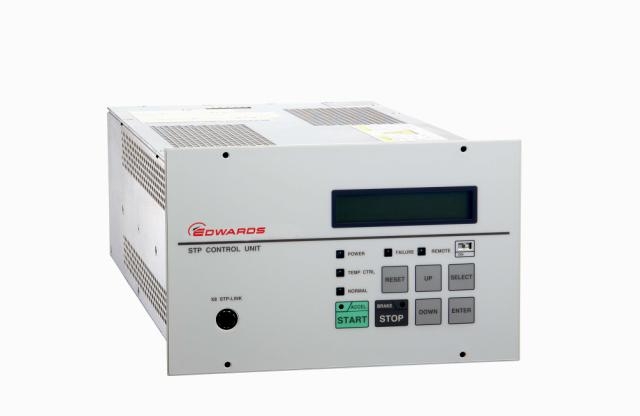

SCU-1600 Control Unit
The fully digital SCU-1600 turbo pump control unit is compatible with STP turbo pumps ranging from 2000 ls-1 to 4500 ls-1. It provides reliability, enhanced communication and pump compatibility with reduced back-up unit requirements and minimized overall cost of ownership.
Informacje
Features and Benefits
- Advanced pre-maintenance function
Precise maintenance timing
Two stage warning messages
Rotor imbalance monitoring
Back-up bearing damage monitoring
Self-diagnosis functions
- Universal controller
Same cable applicable
Digital communications
- Low Vibration
Auto Vibration Reduction (AVR)
Auto balancing system (ABS)
- Compact construction
Small footprint
Half-rack controller
- Certification
SEMI® compliant, CE Marked and UL Listed
Applications
- STP-A2203/2503/2803/3003/3503
- STP-F2203
- STP-XA2703/3203/4503
- STP-XH2603/3203
Dane techniczne
| Magnetic bearing control system | Digital control |
| Input voltage | 200 – 240 ±10 V a.c. |
| Power consumption (without Temperature Management System, TMS) | Max 1600 VA |
| Power consumption (with TMS) | Max 2100 VA |
| Input frequency | 50/60 ±2 Hz |
| Leak current | 3.5 mA |
| Main breaker rated current | 15 A |
| Motor drive system | 3-phase d.c. |
| Allowable ambient temperature | 0 to 40 °C (32 to 104 °F) |
| Weight | 12 kg |
| TMS control unit | Built-in |
| Serial communication function (RS232/RS485) | Standard |
| Operation switch | Start, Stop, Reset, Select, Up, Down, Enter, Manual/Remote |
| Panel display | LCD |
