WRG-S-NW25 / nWRG-S-NW25

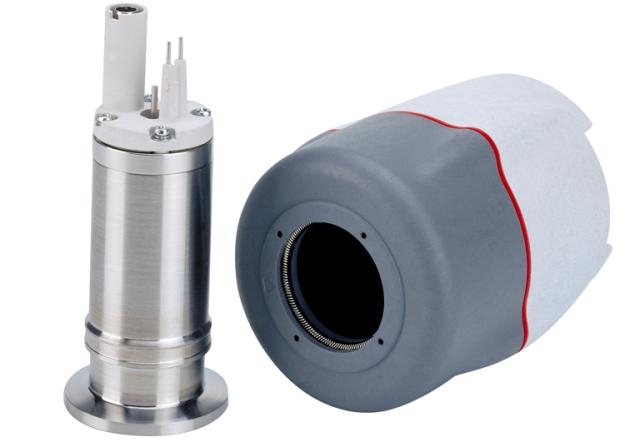

The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10^-9 mbar with a linear output. Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a new patented striker, pushbutton calibration and set point controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the system controls.

nWRG-S-NW25 - to głowica z wyjściem cyfrowym RS485. Karta katalogowa do pobrania poniżej.

Features and Benefits

• Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale)
• D-type version including cable strain relief and enhanced ingress protection - IP44
• Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy
• Easily programmed set point covering entire measuring range
• Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions
• Automatic vacuum setting of Pirani gauge element
• Single push button atmosphere setting
• Extended service intervals and gauge lifetime, through reduction of HT voltage after ignition and low discharge current
• Ultra compact, featuring recessed electrical connector
• Easy service; both Pirani and magnetron elements are individually replaceable
• Comprehensive failure mode diagnostics facility

Applications

• Any vacuum system where there is a need to measure pressure over a wide range. The WRG with an AGD represents a very simple and cost effective means of achieving this.
•
• The linear output and equation make WRG’s an attractive option for industrial OEM’s where the gauge may be directly integrated into the process controller.
• The WRG is suitable for a wide range of HV and UHV applications, however if your process will spend a significant amount of time between 5x10^-4 and 5x10^-3mbar then Edwards recommend using independent APG100 Pirani and AIM Penning gauges, as this will improve gauge reliability for your application.

* Accuracy is reduced at the limits of the measuring range.
