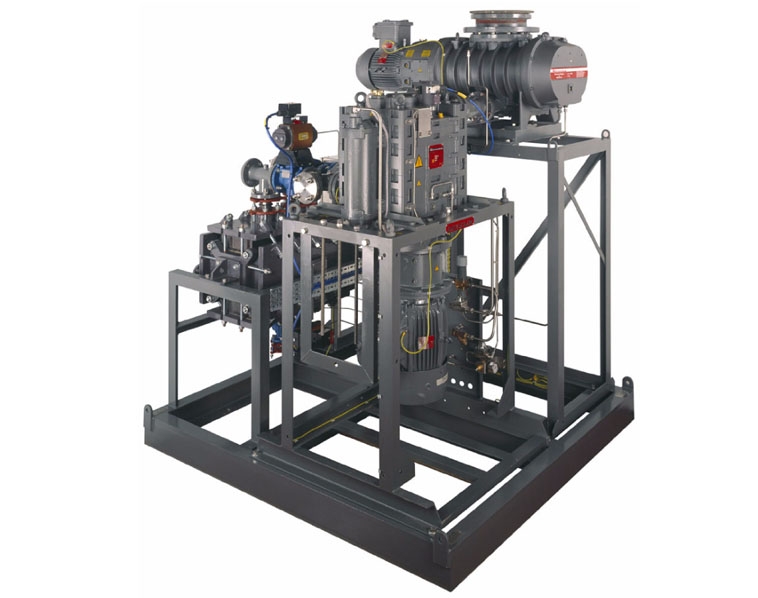

EDP400

EDP pumps are based on Edwards’ oil-free, non-contacting, award-winning, reverse claw mechanism. They provide consistent vacuum at high efficiencies and low costs of ownership. Dry pumps completely eliminate all problems of process contamination and creation of polluted effluent, which are experienced with traditional wet vacuum pump technologies.

Informacje

Features & Benefits

  • Staged compression for optimum temperature profile within the pump and no requirement for cooling gas injection
  • Inherently free draining
  • Able to handle liquid or particulate carryover
  • Short gas path eliminates particulate build-up and corrosion - Edwards’ patented design
  • Can flush with solvents, water or steam


Applications

  • Drying
  • Distillation
  • Reactor service
  • Solvent recovery
  • House/Central vacuum
Dane techniczne
Maximum pumping speed
50 Hz 377 m3h-1/ 222 ft3min-1
60 Hz 427 m3h-1/ 251 ft3min-1
Capacity at 10 mbar (7.5 Torr)
50 Hz 377 m3h-1/ 222 ft3min-1
60 Hz 422 m3h-1/ 248 ft3min-1
Ultimate vacuum
50 Hz 0.4 mbar / 0.3 Torr
60 Hz 0.2 mbar / 0.2 Torr
Maximum back pressure
Standard 1150 mbar / 2.2 psig
Power consumption at 10 mbar (7.5 Torr)
50 Hz 7.0 kW / 9.4 hp
60 Hz 7.0 kW / 9.4 hp
Standard motor (380 – 400 V, 3ph, 50 Hz)
50Hz 18.5 kW
60Hz 25.0 kW
Standard motor (200 – 460 V, 3ph, 60 Hz)
50Hz 25.0 hp
60Hz 30.0 hp
Cooling water flow rate (adjustable)
50 Hz 1 – 10 lmin-1 /0.3 – 2.6 galmin-1
60 Hz 1 – 10 lmin-1 /0.3 – 2.7 galmin-1
Cooling water supply pressure 2 – 10 barg / 29 – 145 psig
Seal purge flow (maximum),
regulated to 0.3 - 0.5 barg (5 – 7 psig)
20 l min-1 / 0.7 ft3min-1
Seal purge supply pressure(minimum - maximum) 2 – 10 barg / 29 – 145 psig
Noise (max. with exhaust silencer)
50 Hz 82 dB(A)
60 Hz 82 dB(A)
Weight (with frame and standard motor)
50 Hz 918 kg / 2024 lbs
60 Hz 960 kg / 2116 lbs
Inlet 3 ANSI / DN80
Outlet 1.5 ANSI / DN40
Pumping mechanism 3 stage reversed claw
Pliki do pobrania
EDP chemical dry pump datasheet
