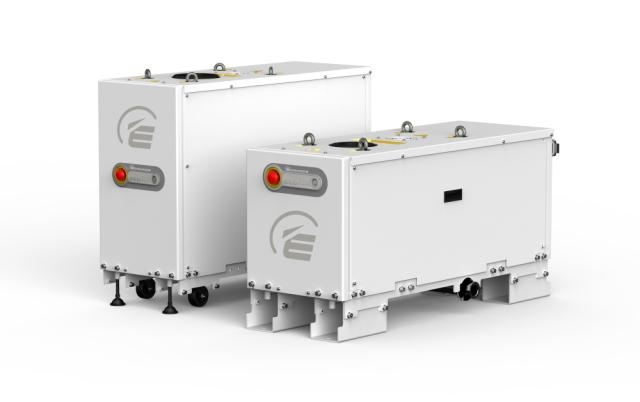

GXS750F

Edwards, a pioneer in dry pumping technology, has more than 90 years experience in harsh process vacuum applications, including dust and process contaminants handling, with more than 150,000 pumps installed worldwide.

The GXS industrial dry screw pump incorporates innovative, patented design features that establish a new standard in dry pumping.

Informacje

Features and Benefits

  • Designed for high reliability
  • Adaptable to a wide range of applications
  • Long service interval and easy swap-out
  • Low cost of ownership
  • Minimum workplace and environmental impact
  • Simple to install and operate
  • Ideal for integration into larger systems


Applications

  • Solar
  • Freeze drying
  • Sterilisation
  • Coating
  • Metallurgy
  • Leak detection
  • Food packaging
  • Vacuum chamber evacuation
  • High purity gas cylinder filling
Dane techniczne

GXS750
Peak Pumping Speed 740 m3h-1 (436 cfm)
Ultimate Pressure 8 x 10-3 mbar (6 x 10-3 Torr)
Full Load Power
@ ultimate pressure 10 kW (13.4 hp)
@ peak pumping load 37 kW (49.6 hp)
Cooling Water flow @ min DP 10 lmin-1 (2.6 galmin-1)
Cooling Water DP across pump 2 bar (29 psig)
Inlet connection ISO100
Exhaust connection NW50
Mass 640 Kg (1411 lb)
Lubrication volume 2.4 l (0.6 gal)
Cooling Water supply pressure (max) 6.9 bar (100 psig)
Cooling Water temperature
  High volts 5-40 °C (41-104 °F)
  Low Volts 5-30 °C (41-86 °F)
Purge gas - pressure* 2.5-6.9 bar (36-100 psig)
Purge gas – light duty* 12 slm
Purge gas – medium duty* 18-146 slm
High flow purge/solvent flush supply pressure 2.5-6.9 bar (36-100 psig)
Noise <70B(A)
Operating Temperature 5-40 °C (41-104 °F)
Exhaust back pressure (max) 1400 mbar (20 psia)
IP rating – standard 31
Lubrication PFPE Drynert® 25/6
Monitoring & Control
  Standard Front panel - Dashboard
  Serial - RS232
  Ethernet Webserver
  Option Parallel – MCM MicroTim
  Profibus DP
  Pump Display Terminal (PDT)
  FabWorks®
