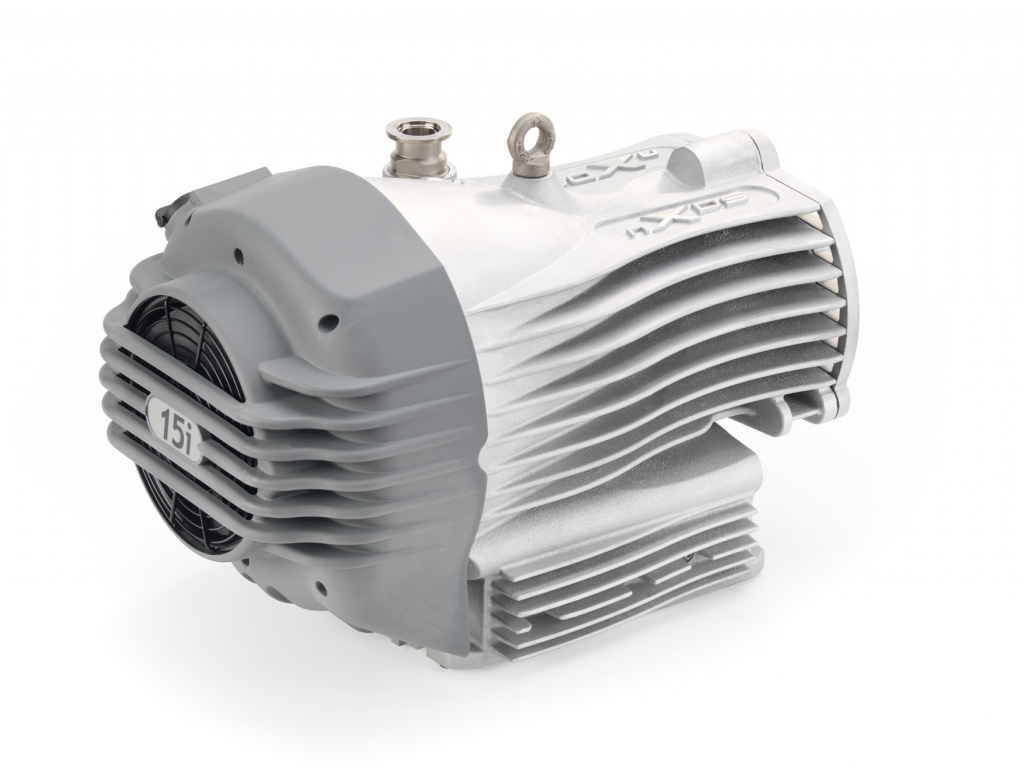

nXDS15i

The nXDS15i is the next generation in completely oil free, dry scroll pumps and can be used to replace similar sized dry pumps and medium sized oil sealed pumps in a variety of applications. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.  nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.

Informacje

Features and Benefits

  • Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
  • No atmosphere to vacuum shaft seals means bearings are completely isolated, which prevents process attack and means the bearings run cooler and last longer
  • Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
  • Improved motor and drive efficiencies for reduced power and cost of ownership
  • Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485


Applications

  • General clean pumping applications
  • Scanning Electron Microscopes - SEM
  • Beam lines and high energy physics
  • Backing turbo pumps
  • Centrifuges, ultra-high speed
  • Coating
  • Cryogenics
  • Degassing/curing - oil, epoxy resin
  • Distillation/extraction/filtration
  • Freeze drying
  • Furnaces
  • Gel drying
  • Laboratory bench top vacuum
  • Lasers, gas recovery and recirculation
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Rare gas recirculation
  • Rare gas recovery
  • Refrigeration manufacture
  • Research and development
  • Rotary, centrifugal evaporators
  • SEM/FIB (ion beam repair)
  • Solvent recovery
  • Surface science instruments
Dane techniczne
Nominal rotational speed 1800 rpm
Displacement 17.1 m3h-1  /  10.1 ft3min-1
Peak pumping speed 15.1 m3h-1  /  8.9 ft3min-1
Ultimate vacuum (total pressure) 0.007 mbar  /  0.005 Torr
Minimum standby rotational speed 1200 rpm
Speed control resolution (percentage of full rotation speed) 1%
Pumping speed at minimum rotational speed 9.9
Maximum continuous inlet pressure 200 mbar
Motor power 1-ph 300 W
Power connector 1-ph IEC EN60320 C13
Recommended fuse 10A, 250Vac rms
Weight 25.2 kg  /  56 lb
Inlet flange NW25
Exhaust flange NW25
Noise level 52 dB(A)
Vibration at inlet flange < 4.5 mms-1   (rms)
Leak tightness (static) < 1x10-6 mbar ls-1
Operating temperature range 10 to 40 °C  /  41 to 104 °F
